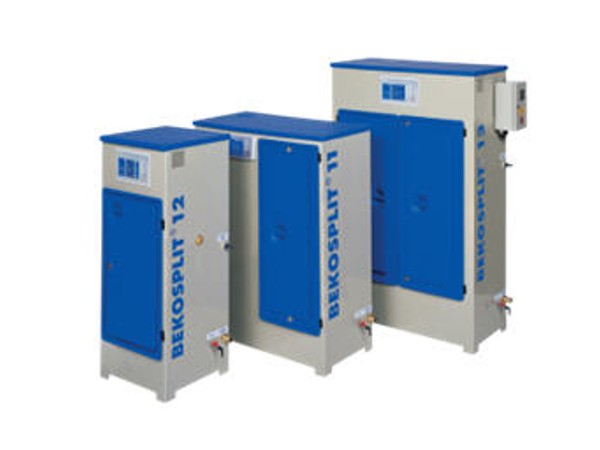

BEKOSPLIT® – SEPARATES OIL/WATER EMULSIONS – EFFECTIVELY

Bekosplit emulsion splitting oil/water separators cleanup emulsified condensates which occur under unfavourable process conditions or with certain lubricant/compressor combinations. In addition to compressed-air condensate, BEKOSPLIT® is also suitable for treating other oil-containing industrial wastewaters and a large variety of solid contaminants can all be removed. Any heavy metals, dirt or paint particles present in the water are reliably adsorbed.

Typical applications are:

• stable emulsion compressor condensate
• oil-contaminated washing water, e.g., from vehicle cleaning
• leak test liquids
• bilge water

Product PDFs

• Bekosplit Oil Water Separator Brochure
• Bekosplit 11 Model Manual
• Bekosplit 12 Model Manual
• Bekosplit 13 Model Manual
• Bekosplit 14 Model Manual
• Bekosplit 14S Model Manual
• Bekosplit 15 Model Manual
• Bekosplit 16 Model Manual
• FL-02 MSDS Safety Data Sheet
• FL-11 MSDS Safety Data Sheet

BEKOSPLIT® Model		11	12	13	14	14S	15	16
Peak compressor performance	m3/min	12.5	25	50	75	75	100	135
Peak throughput	l/h	15	30	60	90	90	120	160
Max. operating pressure at inlet	bar	25
Integrated pre-separation tank	l	70
Reaction tank capacity	l	10	10	22	22	22	54	54
Splitting agent container capacity	l	2.0	8.5	8.5	8.5	25	40	40
Filter bag capacity	l	25	25	2x 60	2x 60	2x 60*	2x 60*	2x 60*
Weight empty	kg	approx. 48	approx. 33	approx. 51	approx. 51	approx. 54	approx. 76	approx. 76
Input voltage	V	115	115	115	115	115	115	115
	Hz	50–60	50–60	50–60	50–60	50–60	50–6	50–60
Power input	VA	<100	<100	<100	<100	<100	<100	<100
Condensate inlet		3x G 1/2"	G 1/2"	G 1/2"	G 1/2"	G 1/2"	G 1/2"	G 1/2"
	mm	di=13,	di=13	di=13	di=13	di=13	di=13	di=13
		1x G 1"
Water outlet		1"	1"	1"	1"	1"	1"	1"
	mm	di =25	di =25	di =25	di =25	di =25	di =25	di =25
