Flanged Moisture / Water Separators

Flanged Moisture / Water Separators

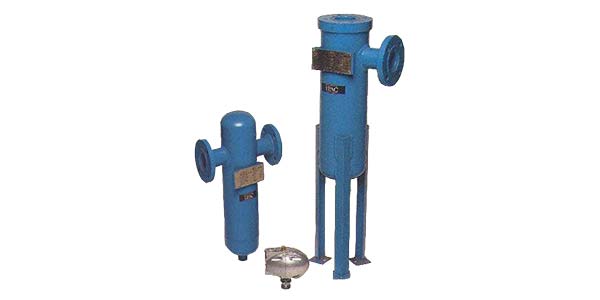

IPAC’s Flanged Centrifugal Moisture/Water Separators are designed to remove more than 99% of the moisture condensed by an air cooled or water cooled after-cooler in a compressed air system. As moisture-laden air from an after-cooler enters the separator, it is forced to pass through directional impellers which spin the air around the separator’s body. Droplets of water are then impinged on the separator wall by centrifugal force. Maximum velocity is reached near the bottom of the lower chamber where the vortex is strongest. The water droplets then coagulate and drain from the separator, while the dry compressed air travels up through the center of the vortex at a reduced velocity to exit the separator. PDF downloads are listed below.

• Fabricated separators offered in both horizontal and vertical configurations
• All fabricated separators are ASME coded
• At rated capacity, IPAC separators remove 99% of the condensed moisture and maintain this effectively down to 20% of rated capacity
• Standard range is 900 SCFM to 25,000 SCFM
• Maximum efficiency with minimal pressure drop
• High pressure units available for up to 2,000 PSIG
• Stainless steel available on fabricated separators
• Special designs are available – consult CAG Purification

Product PDFs

• PRO XF Flanged Water Separator
• Flanged Water Separator Brochure
• Threaded and Flanged Compressed Air Filter Manual
• Walker Threaded and Flanged Water Separator Manual
